Power: fever rated power of 3.5 KW

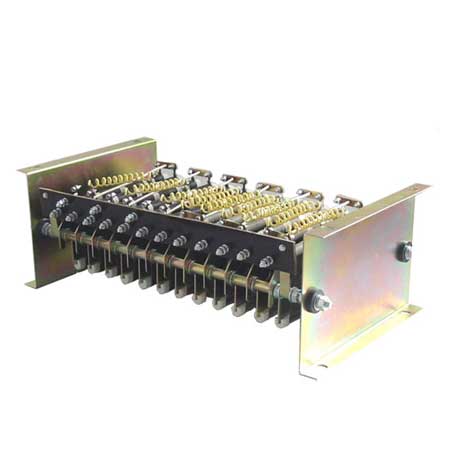

ZX2 type resistor Application: ZX2 series resistor plate for the exchange of 50 Hz voltage to 660 V or 440 V DC voltage to the circuit, mainly for motor starting, speed and brake use. For the open-resistor,
| size | Specifications |
| ZX2 | 2.8Ω+4.4Ω ~ 5.5KW |
| ZX2 | 1.95Ω+4.4Ω Motor 6.4KW |
| ZX2 | 1.95Ω+3.5Ω Motor 7.5KW |
| ZX2 | 1.95Ω+2.8Ω Motor 11.2KW |
| ZX2 | 1.1Ω+1.95Ω Motor 15KW |
| ZX2 | 1.1Ω+1.45Ω Motor 19KW |
| ZX2 | 0.9Ω+1.95Ω Motor 25KW |
| SIZE | L(mm) | B(mm) | C(mm) | D(mm) | H(mm) | Installation Screw |
| ZX2 | 640 | 600 | 330 | 255 | 210 | M12 |
