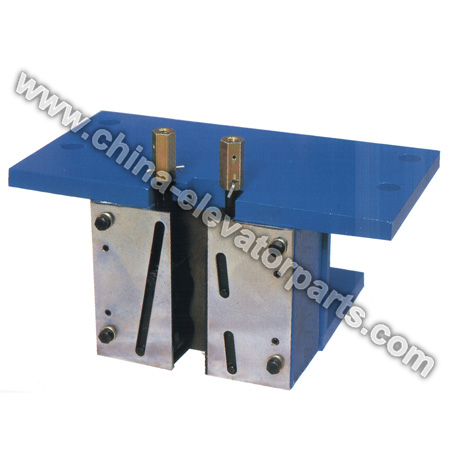

| Type | QS12A |
| Applicable rated speed (m/s) | ≤0.63 |
| Maximum tripping speed of speed limiter (m/s) | ≤0.80 |
| Allowable total mass (P+Q)(Kg) | ≤22000 |
| Aplicable guide rail width (mm) | 19 |

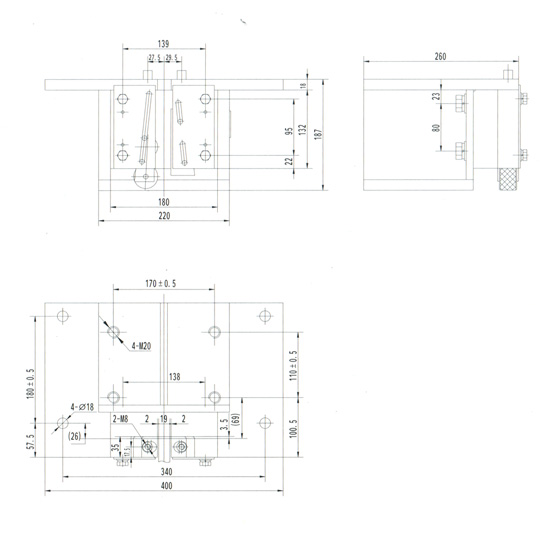

| External dimension (L*W*H) (mm) | 420*260*187 |
| Unit weight (Kg) | 33 |
Company Name: Realever Enterprise Limited
Contact Person: Takki
Tel: +86-574-27887921
Fax: +86-574-87291028
Email: takki@china-elevatorparts.com
Factory Add.: RM1506,HuiYa international building 1107# tiantong north road ningbo china
WebSite: http://www.china-elevatorparts.com/
| Type | QS12A |
| Applicable rated speed (m/s) | ≤0.63 |
| Maximum tripping speed of speed limiter (m/s) | ≤0.80 |
| Allowable total mass (P+Q)(Kg) | ≤22000 |
| Aplicable guide rail width (mm) | 19 |
| External dimension (L*W*H) (mm) | 420*260*187 |
| Unit weight (Kg) | 33 |
