| Item No. |
ZT45- 500/2-T1 |
(DZ350B00) | |
| Rated Voltage (V) | AC220 | ||
| Rated Current (A) | 1*0.69 | ||
| Push Power (N) | 1*500 | ||
| Stroke (mm) | 2 | ||
| Operation method / Insulation Grade | S1 | ||

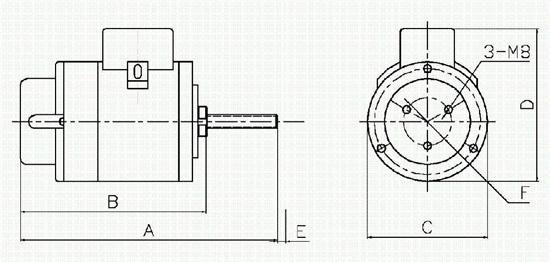

| Overall dimensions and Installation size (mm) | A | 192 | |
| B | 137 | ||
| C | Ø90 | ||
| D | 115 | ||
| E | 10 | ||
| F | Ø363-M8 | ||
