| Item No. |
ZT76- 1700/4-T2 |
ZT90- 1500/6-T2 |
ZT91- 950/3-T2 |
ZT95- 2700/6-T2 |
ZT95- 2200/6-T2 |
ZT95- 2500/3-T2 |
|
| Rated Voltage (V) | DC110 | DC110 | DC110 | DC110 | DC110 | AC220 | |
| Rated Current (A) | 2*1.25 | 2*1.60 | 2*0.8 | 2*2.40 | 2*1.6 | 1.6 | |
| Push Power (N) | ≥1700 | ≥1500 | ≥950 | ≥2700 | ≥2200 | ≥2500 | |
| Stroke (mm) | 4 | 6 | 3 | 6 | 6 | 3 | |
| Operation method / Insulation Grade | S4/B | S4/F | S4/B | S4/F | S4/F | S4/F | |

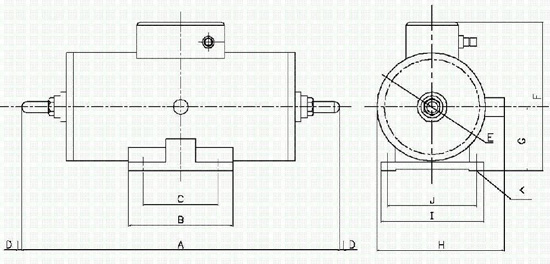

| Overall dimensions and Installation size (mm) | A | 320 | 295 | 242 | 360 | 360 | 360 |
| B | 120 | 145 | 145 | 145 | 145 | 145 | |
| C | 80 | 120 | 120 | 120 | 120 | 120 | |
| D | 4 | 5 | 3 | 6 | 6 | 3 | |
| E | Ø146 | Ø142 | Ø144 | Ø165 | Ø165 | Ø165 | |
| F | 196 | 198 | 211 | 224 | 224 | 224 | |
| G | 76 | 90 | 91 | 95 | 95 | 95 | |
| H | 171 | 160 | 170 | 190 | 190 | 190 | |
| I | 135 | 135 | 135 | 135 | 135 | 135 | |
| J | 80 | 110 | 110 | 110 | 110 | 110 | |
| K | 4-Ø10 | 4-Ø10 | 4-Ø10 | 4-Ø10 | 4-Ø10 | 4-Ø10 | |
