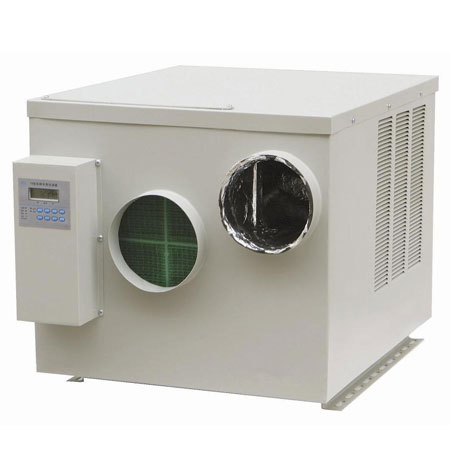

TK(D)-25Y(/Q)Z,TK(D)-32Y(/Q)Z:
This elevator air conditioner series use R407C as refrigrant,which is harmony with ozonosphere.The product has CE certificate, now are mainly supplied to Hongkong and EU market. Major parameter:
| Model | TK-25Y | TK-25Y/Q | TK-32Y | TK-32Y/Q | TKD-25Y | TKD-25Y/Q | TKD-32Y | TKD-32Y/Q | |
| (R407C) | (R407C) | (R407C) | (R407C) | (R407C) | (R407C) | (R407C) | (R407C) | ||
| Rated Cool | 2500 | 2500 | 3200 | 3200 | 2500 | 2500 | 3200 | 3200 | |
| Capaticy (W ) | |||||||||
| Rated Heat | / | / | / | / | 2200 | 2200 | 2200 | 2200 | |
| Capaticy (W ) | |||||||||
| Air Flow (m3/h ) | 430 / 360 | 430 / 360 | 530/430 | 530/430 | 430 / 360 | 430 / 360 | 530/430 | 530/430 | |
| Air Flow (m3/h ) | cool | 4.7 | 4.7 | 5.8 | 5.8 | 4.7 | 4.7 | 5.8 | 5.8 |
| heat | / | / | / | / | 10 | 10 | 10.3 | 10.3 | |
| Rated Input | cool | 1000 | 1000 | 1200 | 1200 | 1000 | 1000 | 1200 | 1200 |
| Power (W ) | heat | / | / | / | / | 2200 | 2200 | 2255 | 2255 |
| Voltage /Frequency | 220-230V | 220-230V | 220V | 220V | 220-230V | 220-230V | 220V | 220V- | |
| -50Hz | -50Hz | -50Hz | -50Hz | -50Hz | -50Hz | -50Hz | 50Hz | ||
| Refrigerant | R407C | R407C | R407C | R407C | R407C | R407C | R407C | R407C | |
| Noise dB (A ) | ≤53 | ≤53 | ≤55 | ≤55 | ≤53 | ≤53 | ≤55 | ≤55 | |
| Dimensions | 615*455 | 545*455 | 640*570 | 640*570 | 615*455 | 545*455 | 640*570 | 640*570 | |
| (L*W*H) mm | *435 | *435 | *510 | *510 | *435 | *435 | *510 | *510 | |
| Weight (kg ) | 39.5 | 38.5 | 59 | 59 | 40 | 39 | 59.5 | 59.5 | |
| For Elevator Load | ﹤1350 | ﹤1350 | ≥1350 | ≥1350 | ﹤1350 | ﹤1350 | ≥1350 | ≥1350 | |
| Capacity(kg) | |||||||||
Installation Brief:
1 Air conditioner main machine installed directly on the elevator upper beam, or fix with rack to the upper beam ;
2 Return air from elevator car;
3 Cool air delivered into car with heat insulation duct;
4 Insulation done in the interlayer, prevent from forming condensation water;
5 The remote receive probe pulled into car and fixed;
6 No blockage to cool air outlet.
