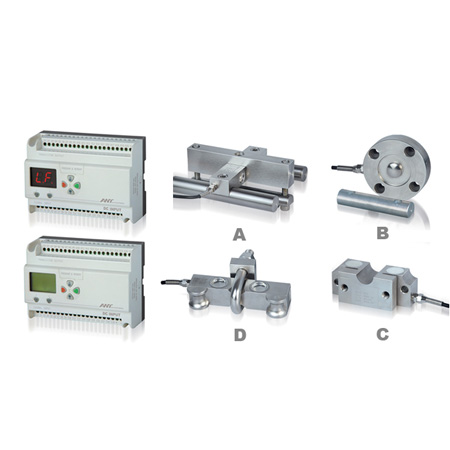

Easy-to-fit wire rope sensor(TypeA,C)
2measuring channels
Easy calibration with no need for known weights
Analog output 0~10V -10~10V
Analog output 4~20mA
| Technical data loadsensor | Technical data control unit 420 | ||
| Rope diameter | 6mm~16mm(A) | Power supply voltage | AC/DC14V~65V |
| Measuring range | 0~500kg | Power dissipation | ≤4W |
| Breaking load | 1.5 | Alarm relays | Light load,over load |
| Connection cable | 14m | Analog voltage output | 0~10V,-10~10V |
| Temperature range | 0℃~70℃ | Analog current output | 4~20mA |
