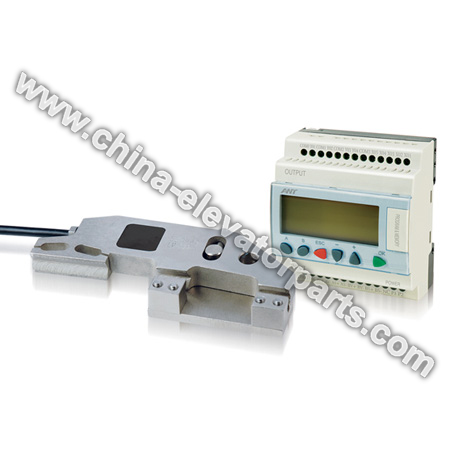

Easy-to-fit wire rope LM sensor
Easy calibration with no need for known weights
Suitable for use with any wire rope diameter form 06-16mm
A miniaturized design
Large LCD display with backlight
Easily programmable software
| Technical data loadsensorLM | Technical data control unit 510 | ||
| Rope diameter | 6mm~16mm(A) | Power supply voltage | AC/DC14V~65V |
| Measuring range | 0~2000kg | Power dissipation | ≤4W |
| Breaking load | 1.5 | Alarm relays | Light load,over load |
| Connection cable | 14m | Measuring channel | 2 |
| Temperature range | 0℃~70℃ | Temperature range | 0℃~70℃ |
